CS294-3 Homework 3: Radiosity Solution in a Cube with symmetrically placed area source on ceiling, through Hierarchical radiosity and F linking
If the images don't look good in your browser (e.g. if the mesh doesn't appear continuous and sharp, or if some lines are missing) that's because your browser is not displaying them at 100% size. Try saving the files and opening them with Photoshop at 100% size.
Renderings of the Mesh

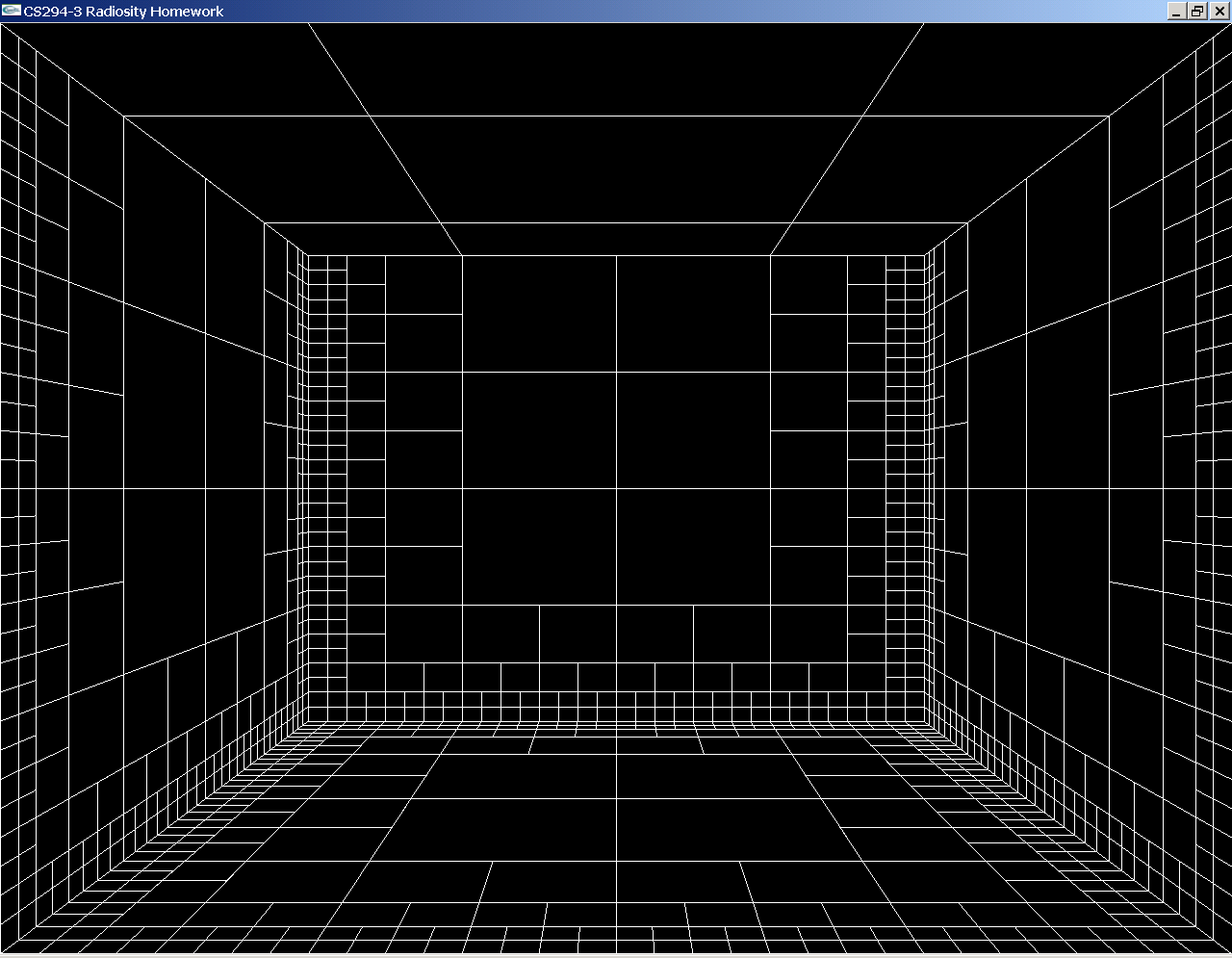

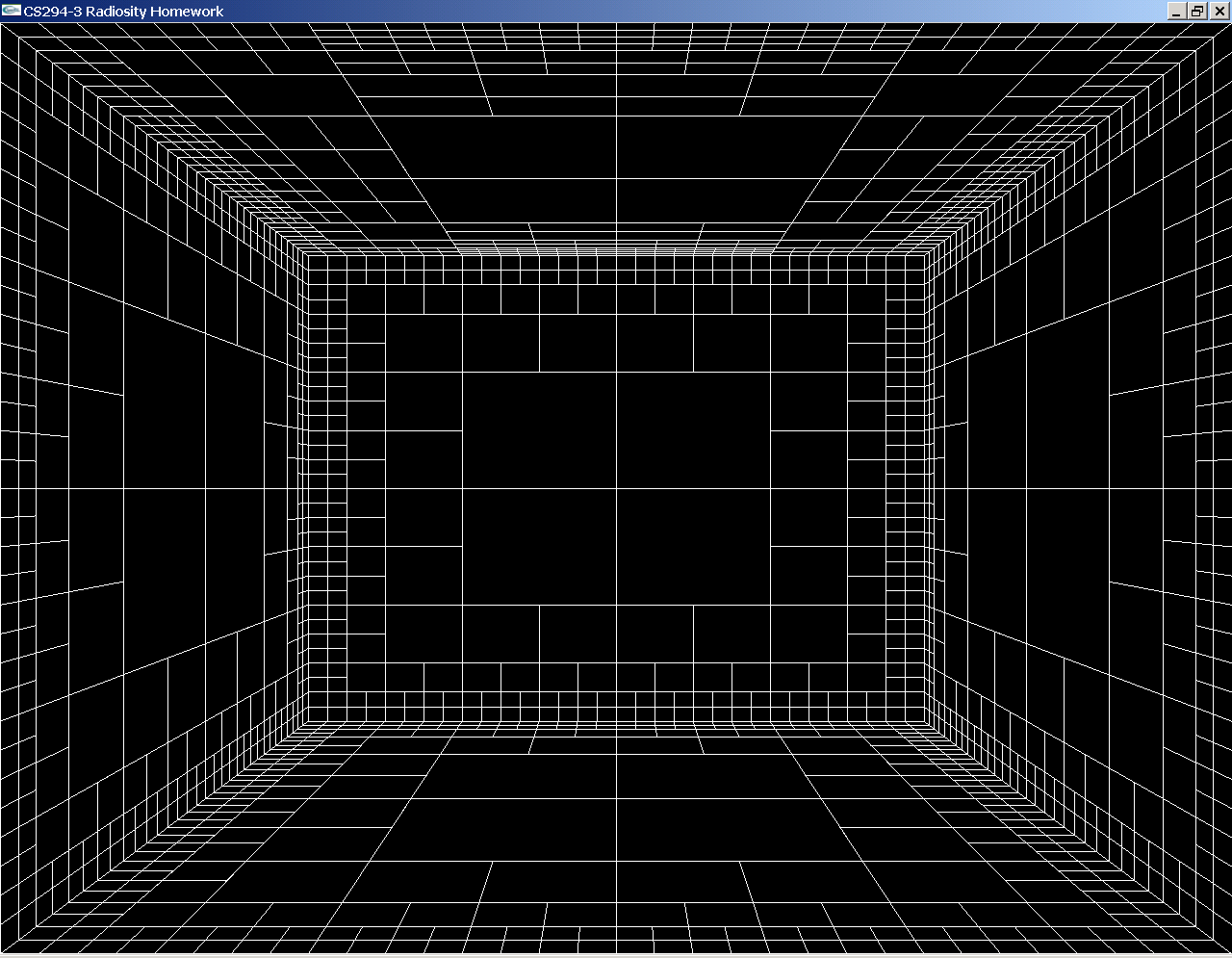

[51kB] Aeps = 0.001, Feps = 0.2

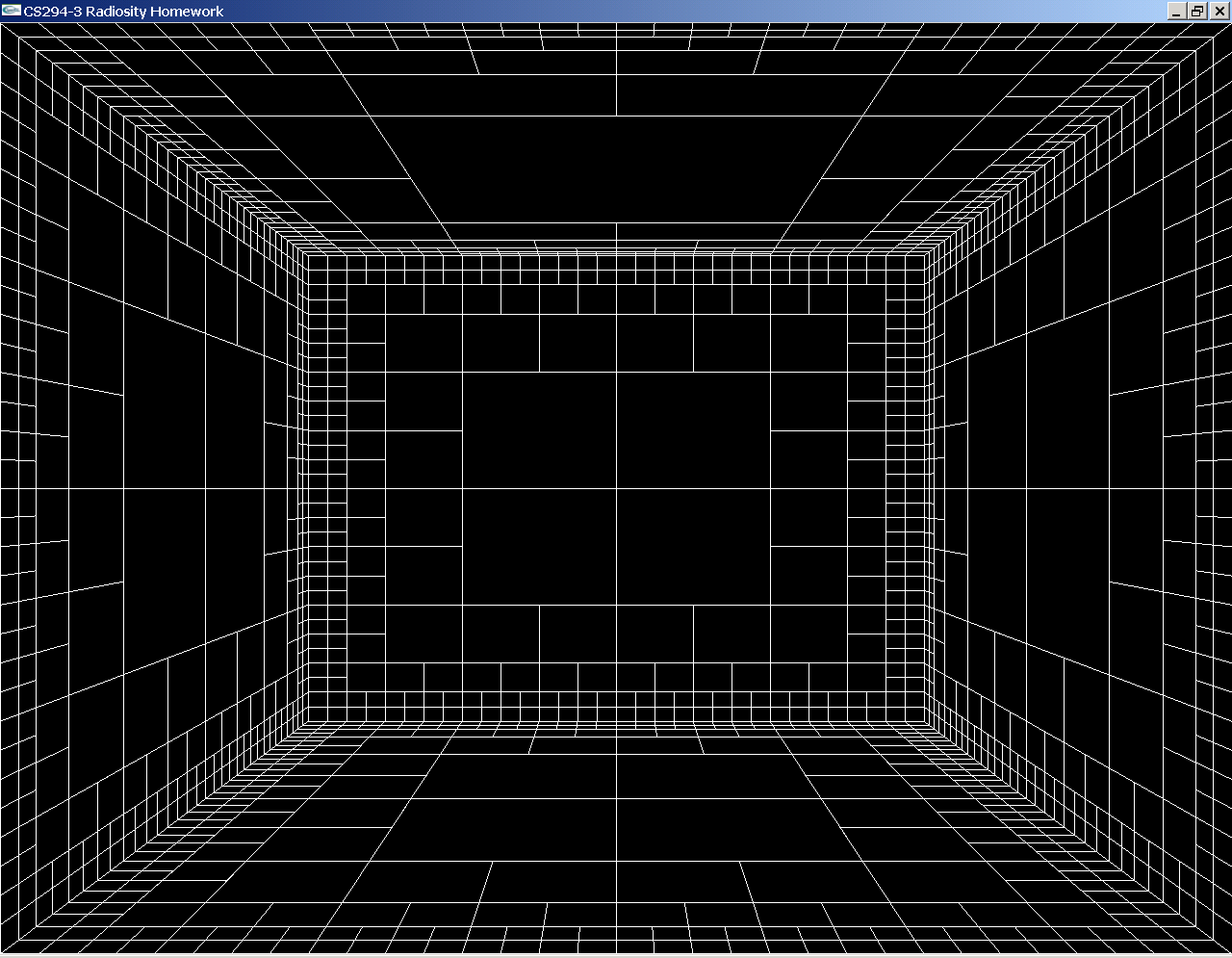

[57kB] Aeps = 0.001, Feps = 0.1
[58kB] Aeps = 0.001, Feps = 0.05

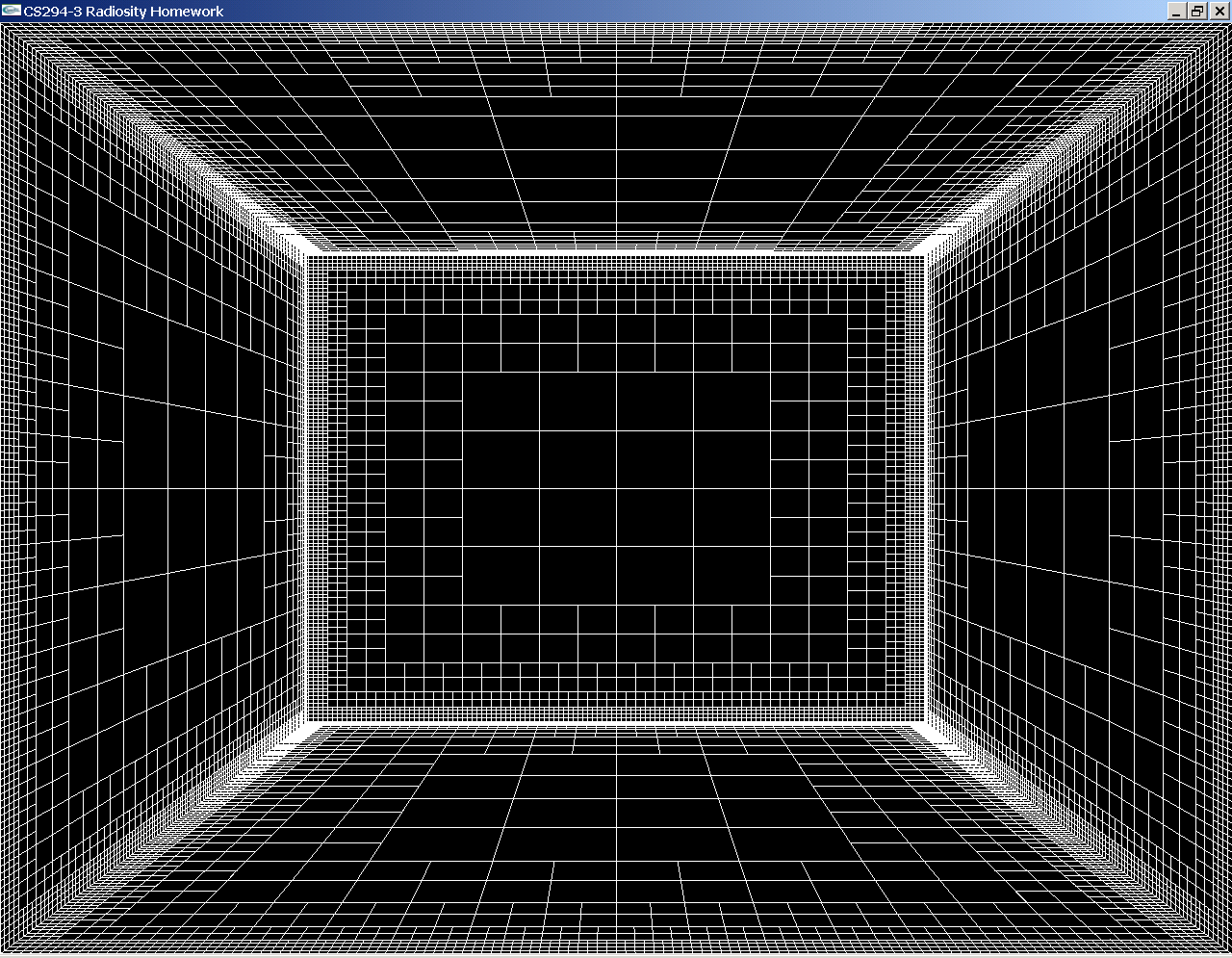

[80kB] Aeps = 0.0001, Feps = 0.02
Radiosity Soln. for White Walls

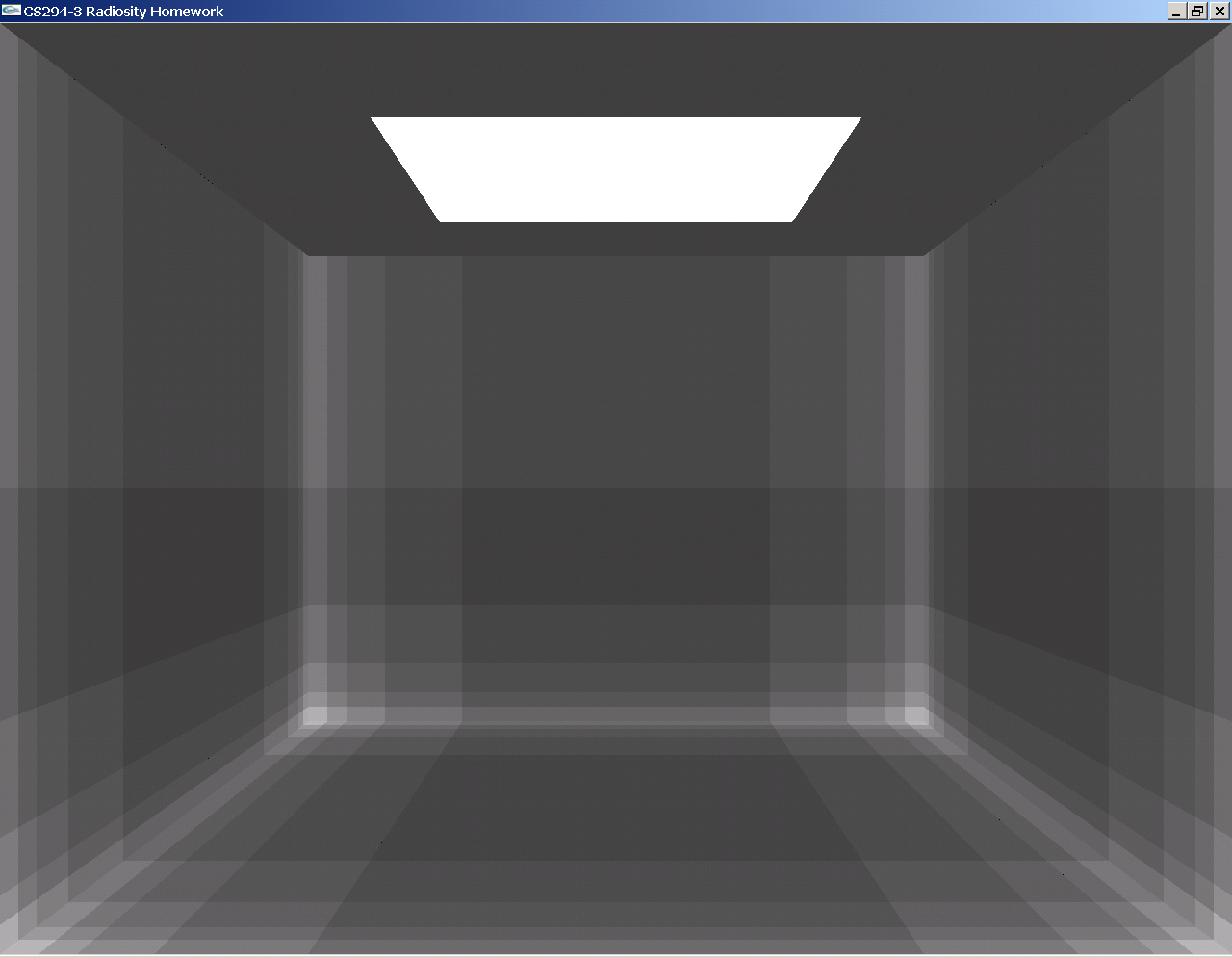

[175kB] Aeps = 0.001, Feps = 0.2
[150kB] Aeps = 0.001, Feps = 0.1
[153kB] Aeps = 0.001, Feps = 0.05

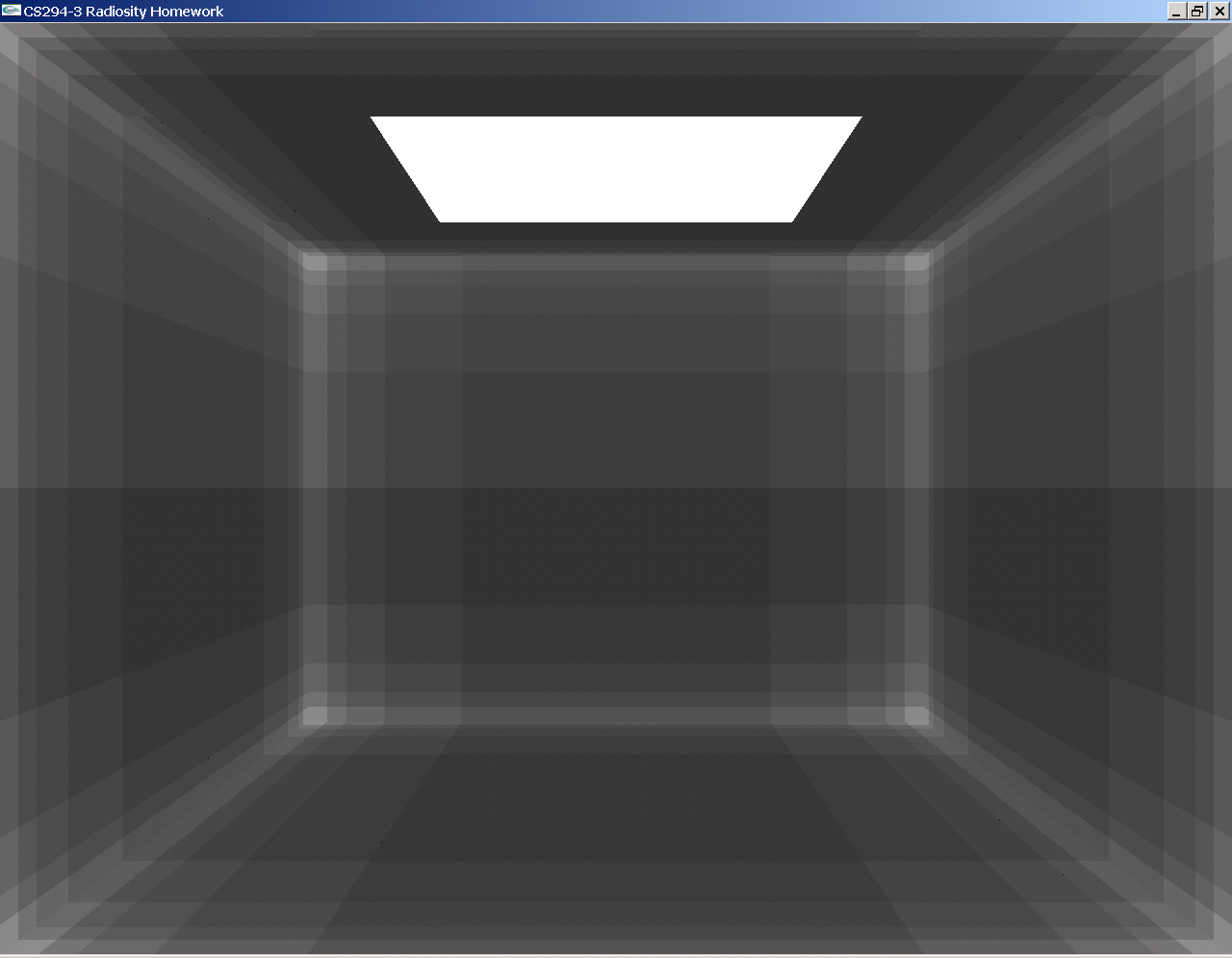

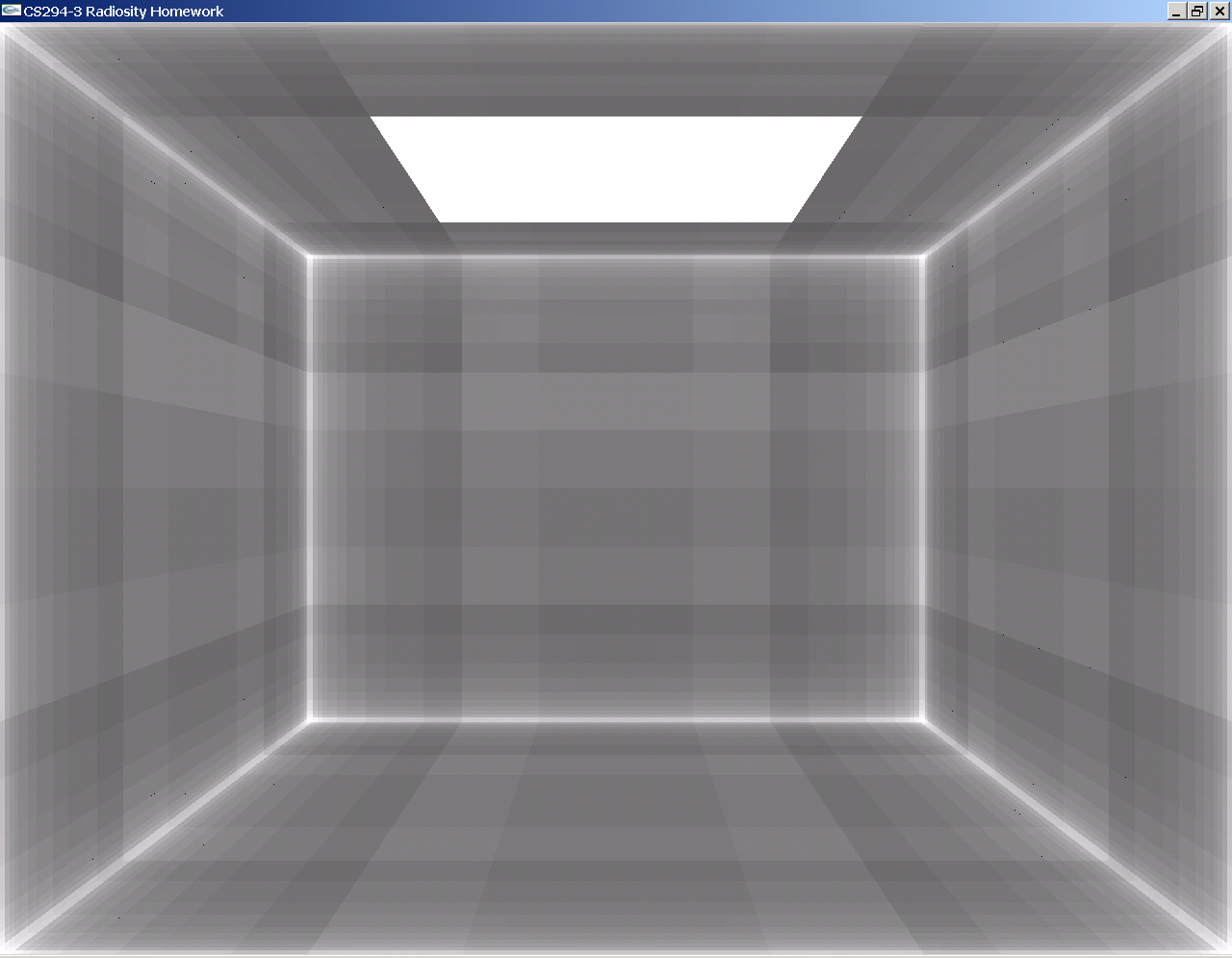

[251kB] Aeps = 0.0001, Feps = 0.02, walls with higher reflectivity
Radiosity Soln. for White Walls and Red Ceiling showing strong Color Bleeding

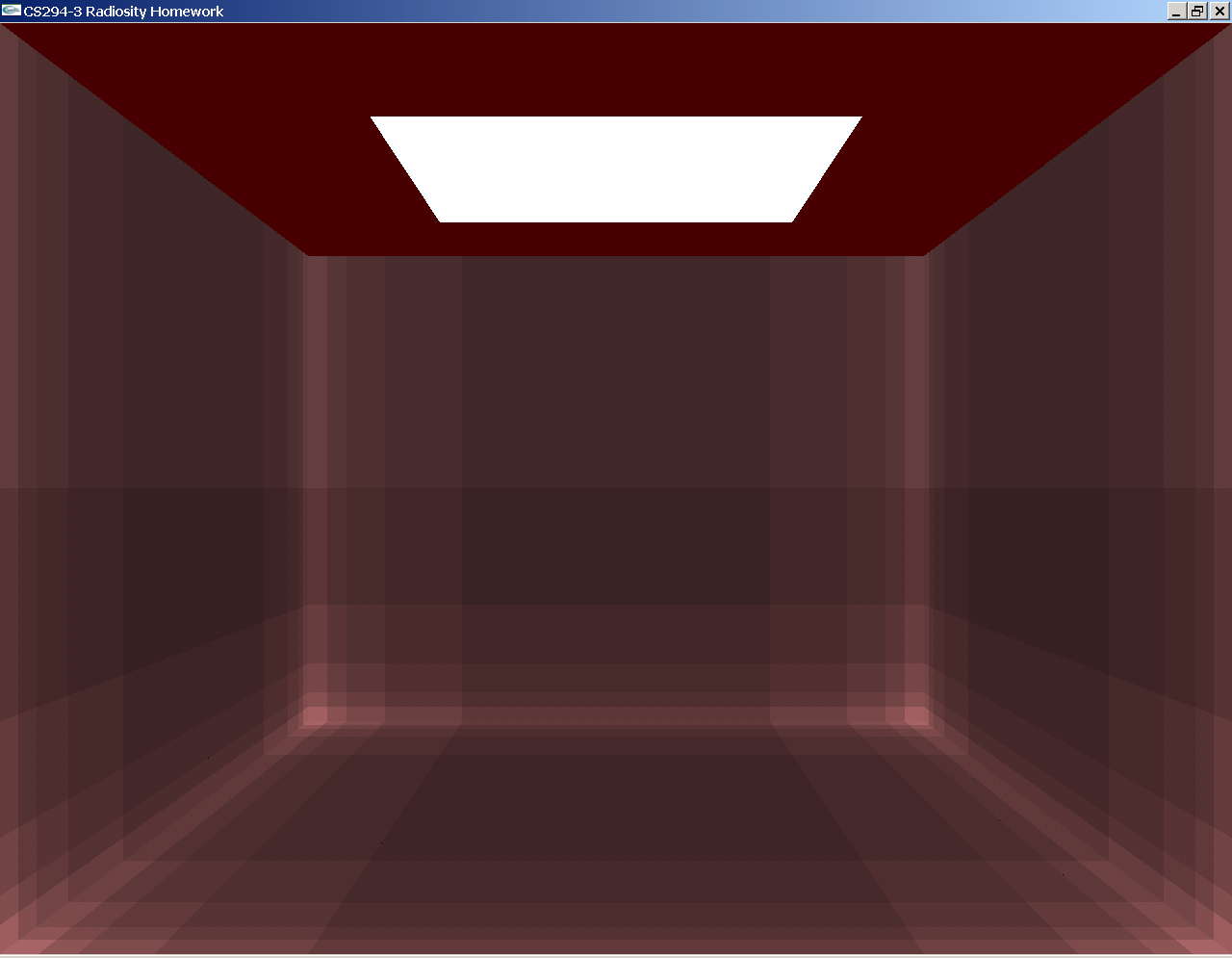

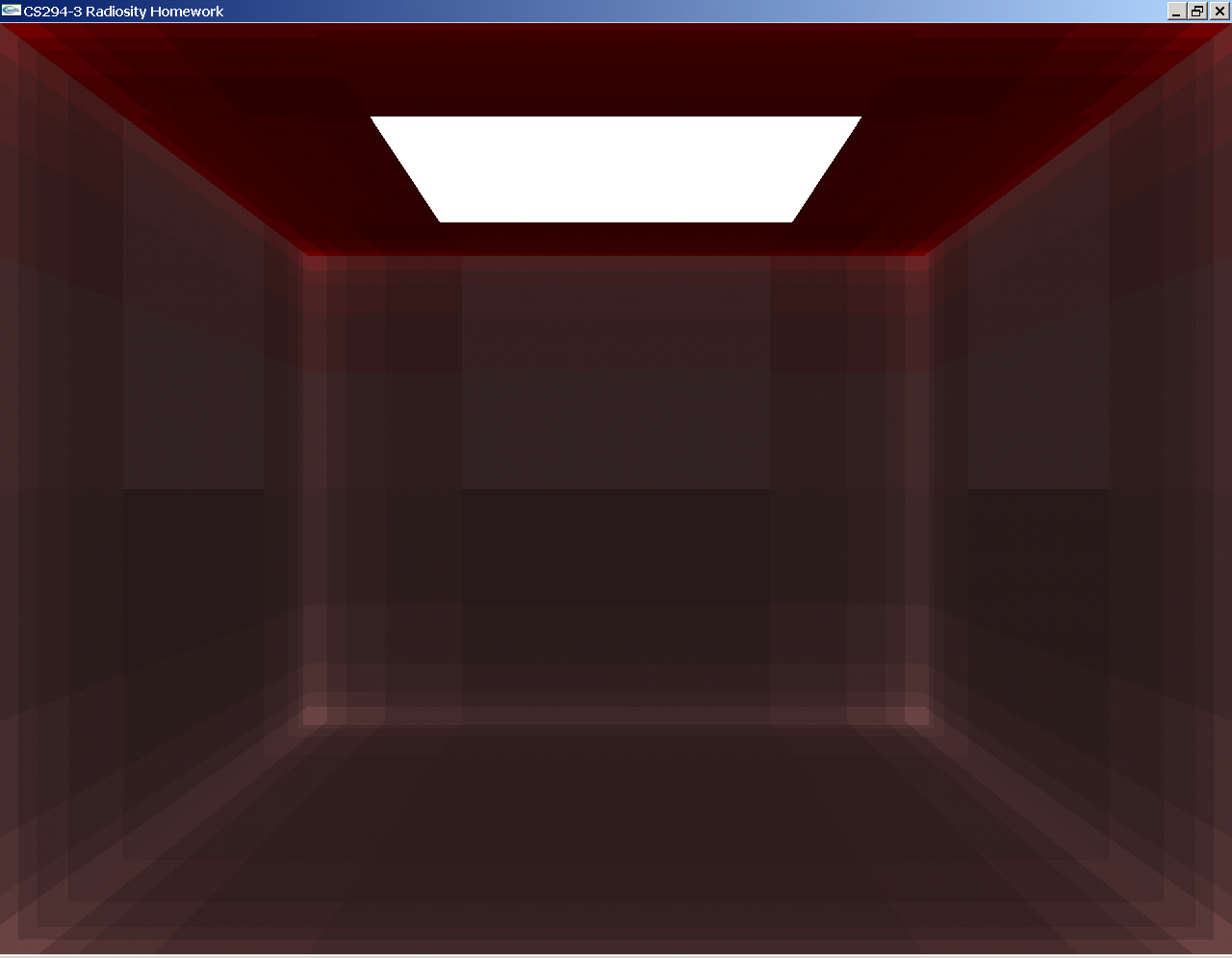

[183kB] Aeps = 0.001, Feps = 0.2

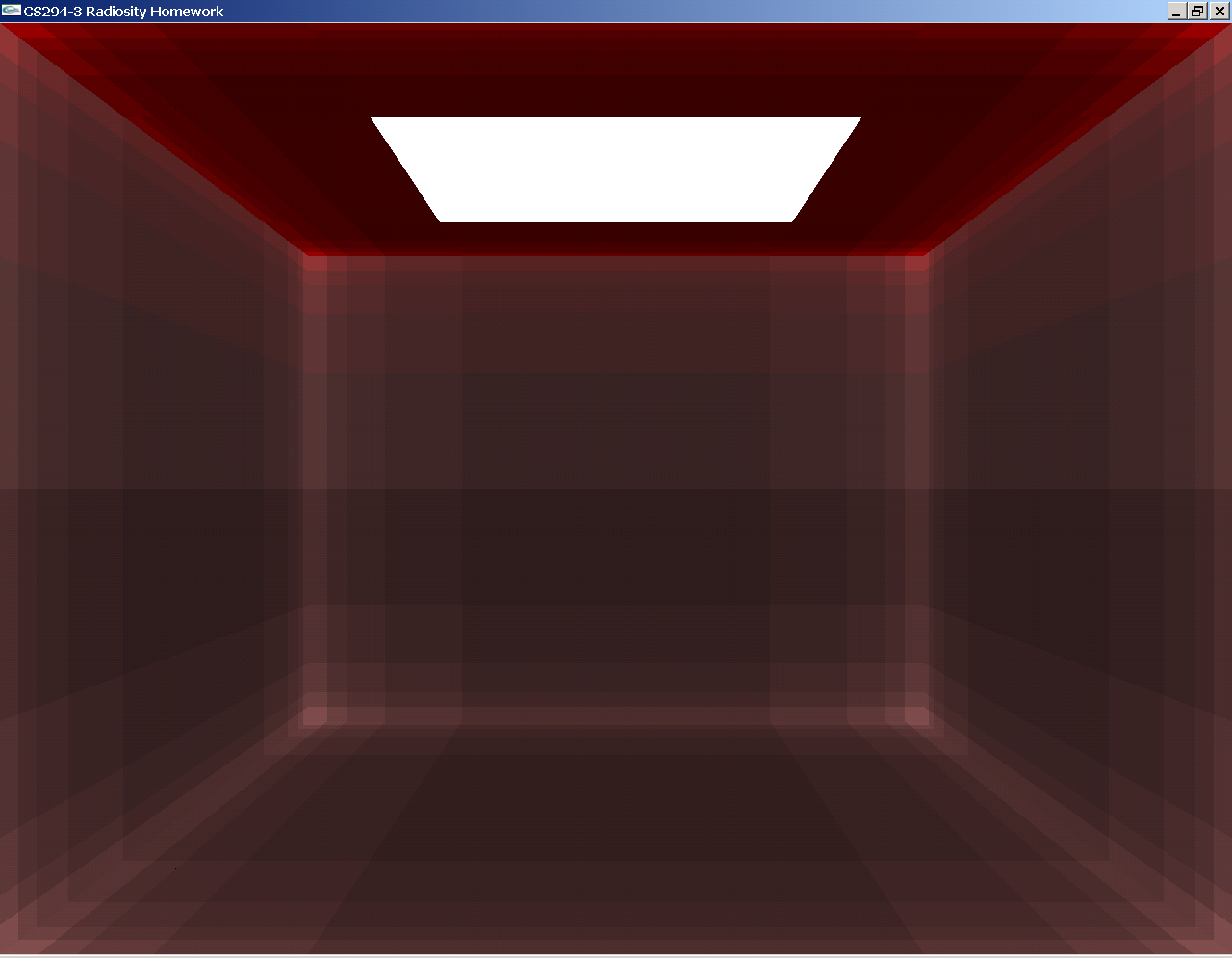

[118kB] Aeps = 0.001, Feps = 0.1
[116kB] Aeps = 0.001, Feps = 0.05

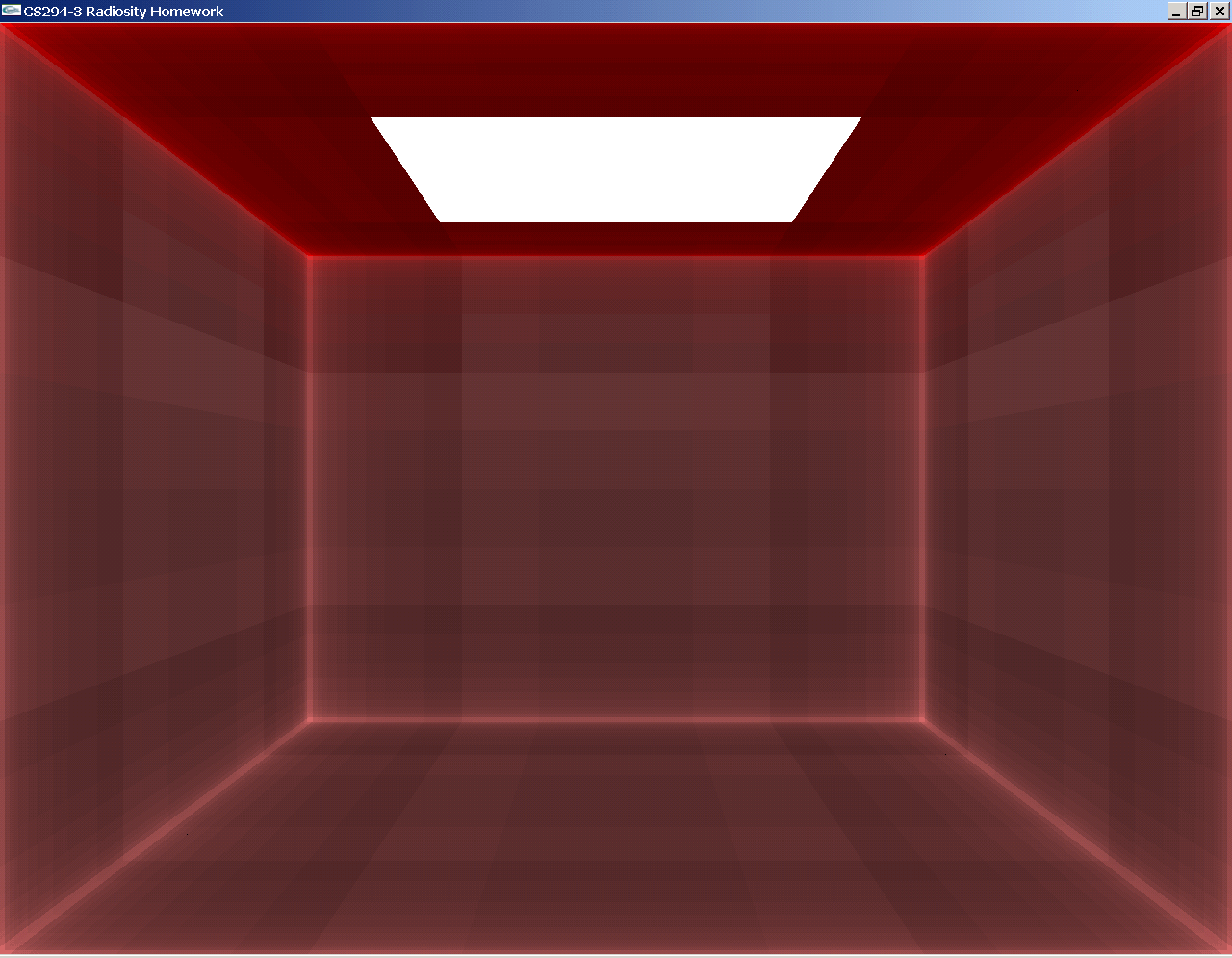

[204kB] Aeps = 0.0001, Feps = 0.02, walls with higher reflectivity
